What types of fittings do you manufacture?

We manufacture buttweld fittings, forged fittings, socket weld fittings, threaded fittings, elbows, tees, reducers, caps and custom industrial pipe fittings.

Do you supply fittings in stainless steel and duplex steel?

Yes, we supply stainless steel, duplex steel, super duplex steel, nickel alloys, copper alloys and other corrosion-resistant materials.

Do you export industrial fittings worldwide?

Yes, Ragnar Metals & Tubes exports industrial fittings to USA, UK, Europe, Middle East, Africa and Asia.

Can you manufacture custom fittings as per drawing?

Yes, we provide custom and non-standard fittings as per client drawings and project specifications.

Pipe Fittings Manufacturer & Exporter

Elbows · Tees · Reducers · Caps · Olets · Stub Ends · Couplings — All materials, all standards, global supply

Get a Quote Download Catalogue

Elbows

Pipe Elbows (45°, 90°, 180°)

Butt-weld and socket-weld elbows in 45°, 90° (short/long radius) and 180° return bend configurations. Available in seamless and welded construction, in duplex, super duplex, stainless steel and nickel alloy grades.

SS 304 / 316 / 310 Duplex 2205 (S32205) Super Duplex 32750 Inconel 625 / 600 Hastelloy C276 / C22 Monel 400 / K500 Titanium Gr. 2 Copper / Brass Alloys

Standards	ASME B16.9 (BW), ASME B16.11 (SW), MSS SP-75
Size Range	½" – 48" (BW) \| ½" – 4" (SW/Forged)
Types	45°LR, 90°LR, 90°SR, 180° Return Bend
Schedule	SCH 10 – SCH XXS

Request Quote

Tees

Pipe Tees (Equal & Reducing Tees)

Equal and reducing tees for branching piping systems. Manufactured in butt-weld and socket-weld ends. Available in seamless and welded construction across all duplex, stainless steel and high-alloy grades for chemical, oil & gas and marine applications.

SS 304L / 316L Duplex 2205 Super Duplex 32750 Inconel 625 Hastelloy C276 Monel 400 Aluminium / Brass

Standards	ASME B16.9, ASME B16.11, MSS SP-97
Size Range	½" – 48" (BW) \| ½" – 4" (SW)
Types	Equal Tee, Reducing Tee, Straight Tee, Lateral
Ends	Butt Weld, Socket Weld, Threaded, Plain End

Request Quote

Reducers

Pipe Reducers (Concentric & Eccentric)

Concentric and eccentric reducers for pipe diameter transitions. Concentric reducers are ideal for vertical piping; eccentric reducers prevent air pockets in horizontal lines. Available in all duplex and stainless steel grades.

SS 304 / 316 Duplex 2205 Super Duplex 32750 Inconel 625 Hastelloy C276 Copper / Brass Alloys

Standards	ASME B16.9, MSS SP-75
Size Range	½" x ¼" – 48" x 36" (BW)
Types	Concentric, Eccentric
Schedule	SCH 10S – XXS

Request Quote

Caps

Pipe Caps & Plugs

End caps and plugs to close the ends of pipes and fittings. Available in dished, flat and semi-ellipsoidal head profiles. Used in chemical plants, offshore platforms and pressure vessel systems. Manufactured in all corrosion-resistant grades.

SS 304 / 316L Duplex 2205 Super Duplex 32750 Inconel 625 Hastelloy C276 Monel 400

Standards	ASME B16.9, ASME B16.11
Size Range	½" – 48" (BW) \| ½" – 4" (SW/Threaded)
Types	Dished End Cap, Flat Cap, Dome Cap, Plug
Ends	Butt Weld, Socket Weld, Threaded

Request Quote

Olets

Olets (Weldolet, Sockolet, Threadolet & More)

Outlet fittings (Olets) for branch connections on pipe headers and vessels. Available as Weldolet, Sockolet, Threadolet, Elbowlet, Latrolet, Sweeplet and Nipolet in all standard alloy grades. Reinforced branch connections without reducing pipe wall integrity.

SS 304 / 316 Duplex 2205 Super Duplex 32750 Inconel 625 Hastelloy C276 Monel 400 Carbon Steel A105

Standards	MSS SP-97, ASME B16.11
Types	Weldolet, Sockolet, Threadolet, Elbowlet, Latrolet
Size Range	½" – 24" (branch size)
Rating	3000#, 6000#, 9000# (forged); Schedule matching

Request Quote

Stub Ends

Stub Ends (Lap Joint Fittings)

Stub ends are used with lap joint flanges to allow rotation of the flange, facilitating bolt hole alignment during assembly. Available in Type A (long) and Type B (short). Ideal for cryogenic and high-purity applications.

SS 304L / 316L Duplex 2205 Super Duplex 32750 Inconel 625 Hastelloy C276

Standards	ASME B16.9, MSS SP-43
Types	Type A (Long), Type B (Short)
Size Range	½" – 24"
Applications	Cryogenic, High-Purity, Rotating Equipment

Request Quote

Couplings & Nipples

Couplings, Unions & Nipples

Forged full couplings, half couplings, reducing couplings, unions and pipe nipples (hex, barrel, swage) in socket weld and threaded ends. For small-bore, high-pressure instrument and process piping connections.

SS 304 / 316 Duplex 2205 Super Duplex 32750 Inconel 625 Hastelloy C276 Monel 400 Copper / Brass

Standards	ASME B16.11, ASME B16.14
Pressure Rating	2000#, 3000#, 6000# (forged)
Types	Full/Half Coupling, Union, Hex/Barrel/Swage Nipple
Ends	Socket Weld (SW), Threaded (NPT/BSP)

Request Quote

Materials We Supply Fittings In

All fittings available in the following material grades

Stainless Steel

304/304L, 316/316L, 310, 321

Duplex Steel

2205, 2101, 2304, S31803

Super Duplex

S32750, S32760, Zeron 100

Inconel

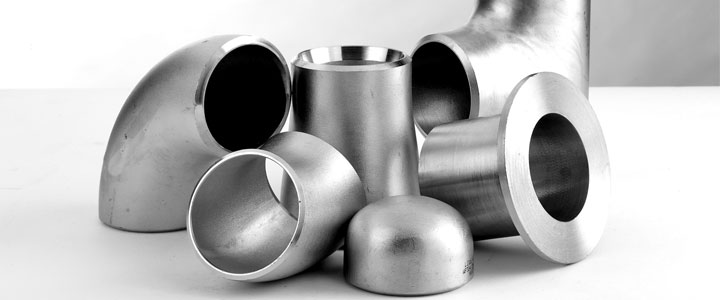

600, 625, 718, 825

Hastelloy

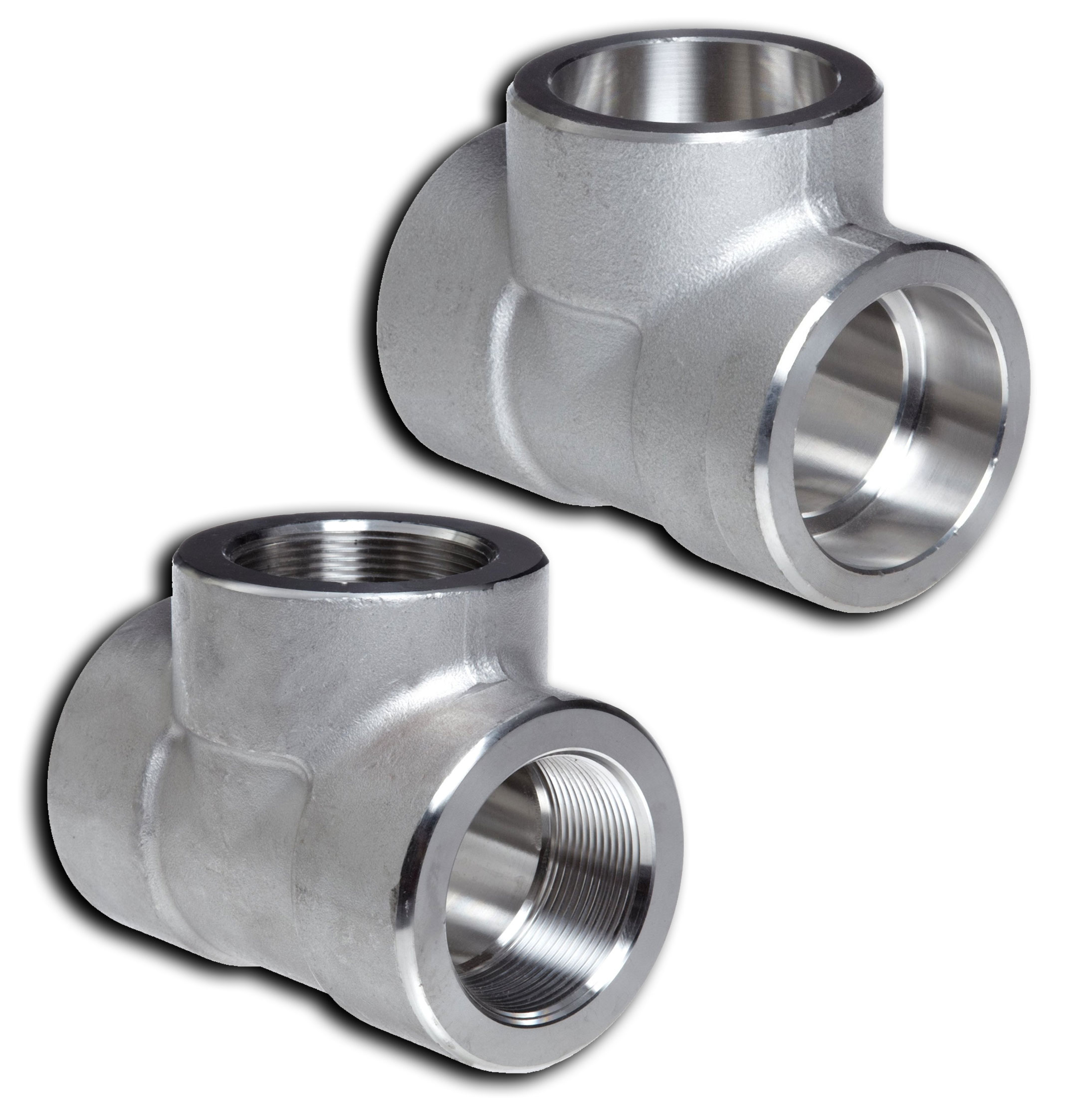

C276, C22, B2, B3, X

Monel

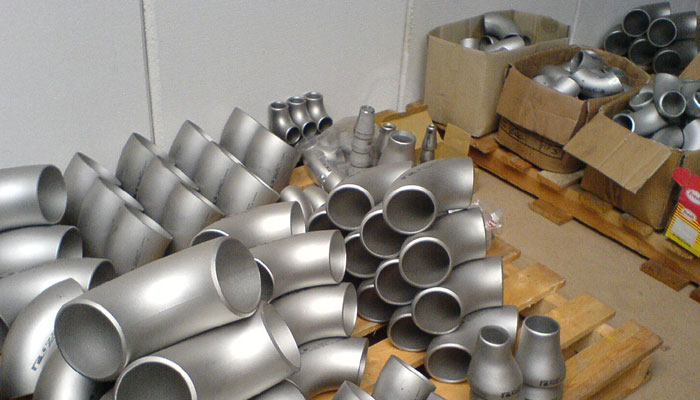

400, K500

Titanium

Grade 2, Grade 5 (6Al-4V)

Copper Alloys

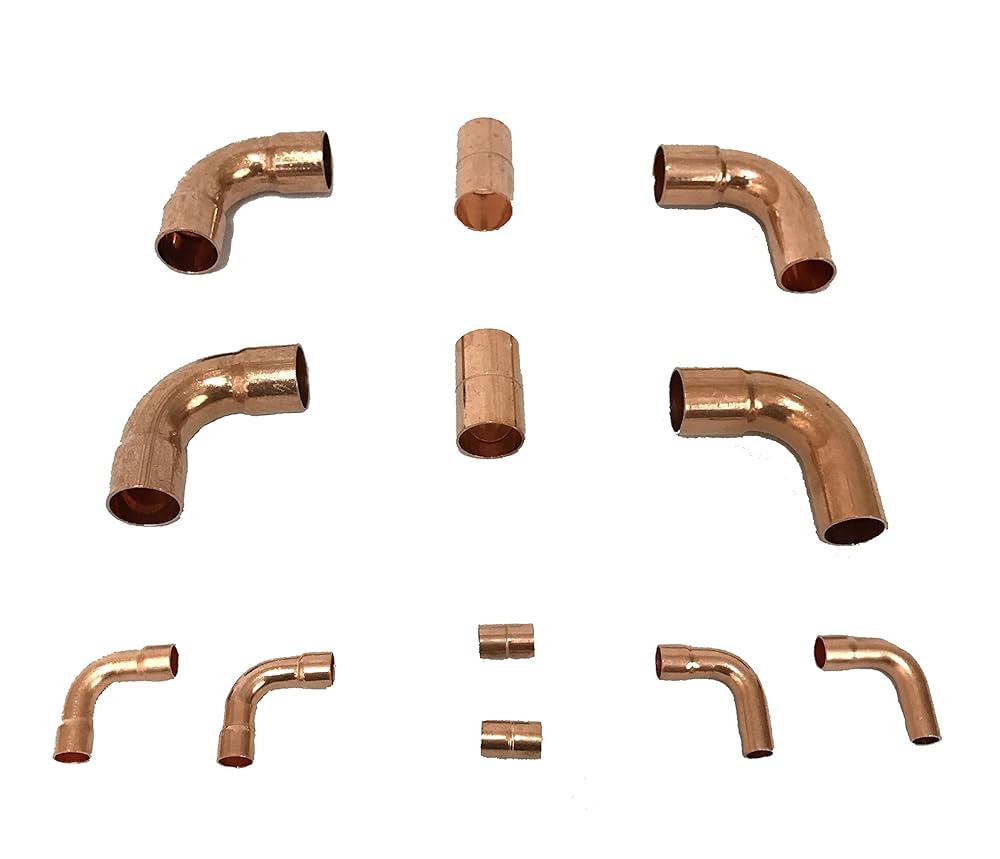

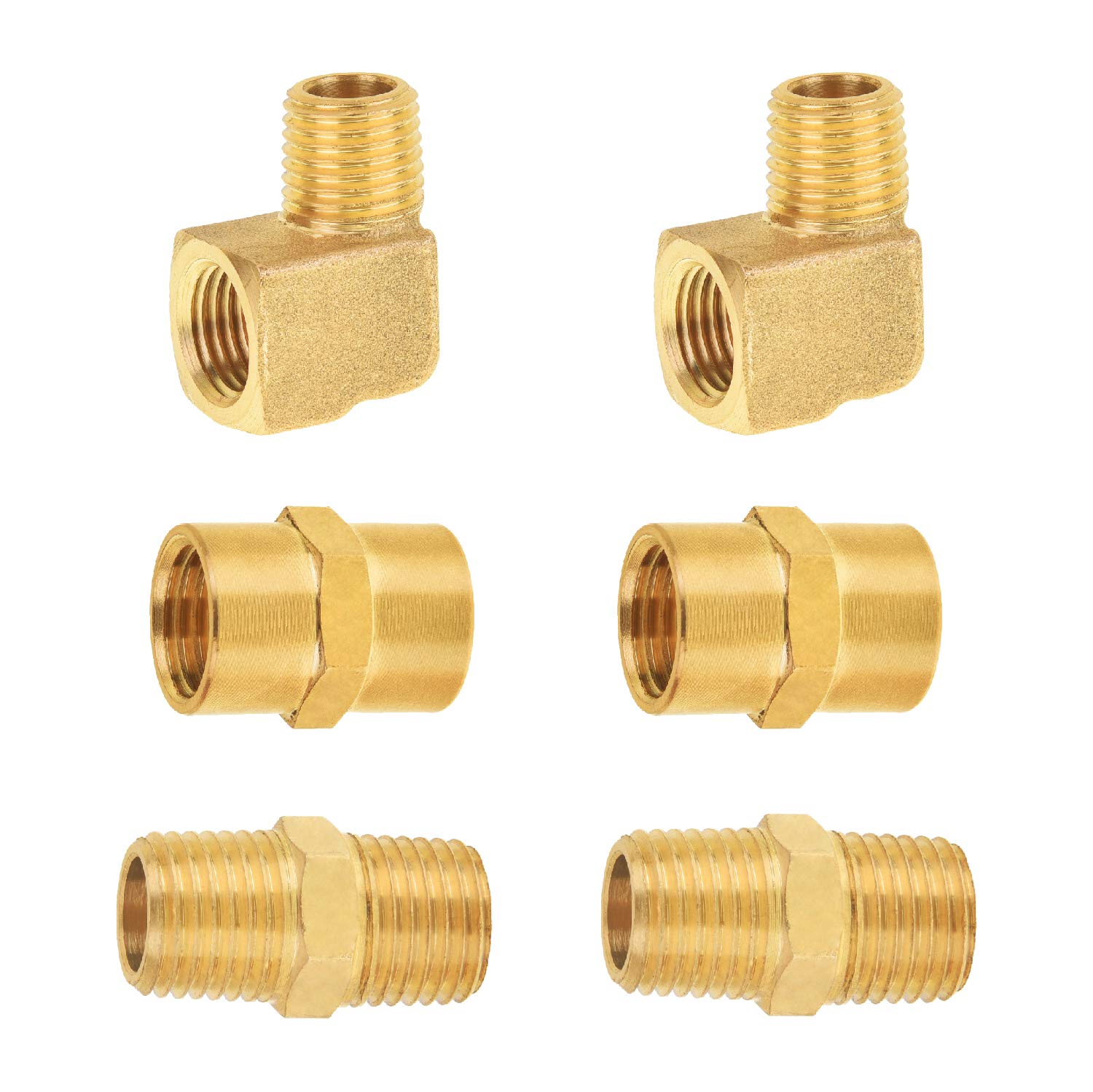

Copper, Brass, Al-Bronze, Ph-Bronze

All Grades & Materials

Pipe Fittings — All Grade & Material Pages

Browse all pipe fitting pages by material — stainless steel, duplex, super duplex, nickel alloys and copper alloys.

Stainless Steel Fittings

All Nickel Alloy Fitting Pages

By Alloy

Nickel Alloy Fittings Inconel Fittings Hastelloy Fittings Monel Fittings Titanium Fittings

Duplex & Super Duplex Fittings

All Duplex & Super Duplex Fitting Pages

Duplex Fittings

Duplex Fittings — Mfr, Supplier & Exporter

Super Duplex Fittings

Super Duplex Fittings — Mfr, Supplier & Exporter

Nickel Alloy Fittings

Nickel Alloy Fitting Pages

Grade Pages

Nickel Alloy Fittings Inconel Fittings Hastelloy Fittings Monel Fittings Titanium Fittings

Copper & Non-Ferrous Fittings

All Copper & Non-Ferrous Fitting Pages

By Material

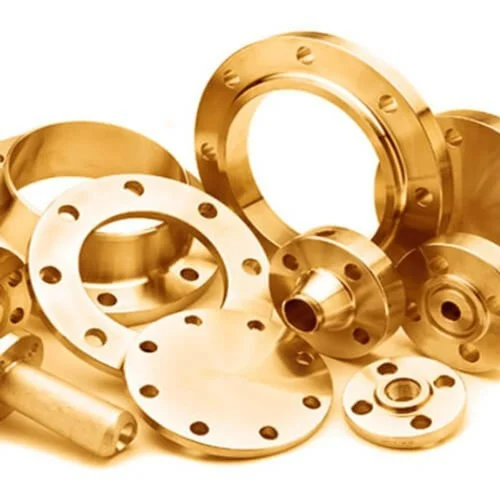

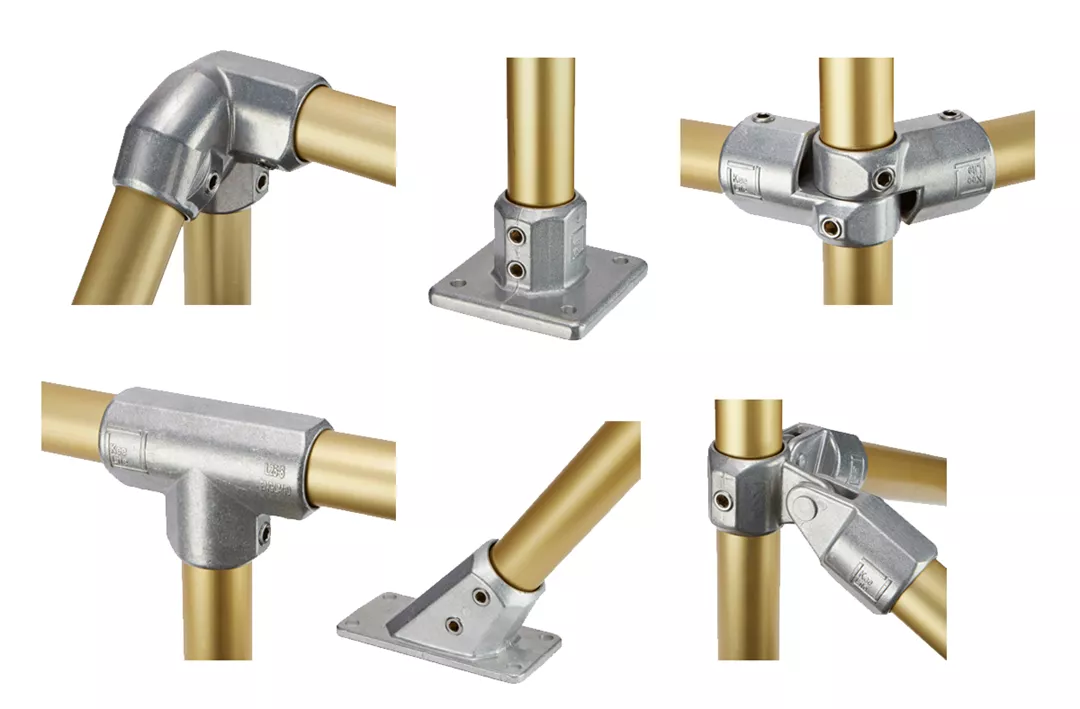

Copper Fittings Brass Fittings Aluminium Bronze Fittings Phosphorus Bronze Fittings Beryllium Copper Fittings Gunmetal Fittings Aluminium Fittings

Looking for Certified Pipe Fittings?

We supply butt-weld, socket-weld and forged fittings with MTC 3.1/3.2 certification. Custom sizes and grades available. ISO certified manufacturer.
