Flanges Manufacturer & Exporter

Weld Neck · Slip-On · Blind · Socket Weld · Orifice · Lap Joint · RTJ — All types in Duplex, Super Duplex & Alloy grades

Get a Quote Download Catalogue
Weld Neck Flange - Ragnar Metals
Weld Neck Flange

Weld Neck Flange (WNRF)

Weld neck flanges feature a long tapered hub that provides the strongest connection for high-pressure and high-temperature applications. The bore matches the pipe ID, reducing turbulence. Used in oil & gas, chemical and power plant piping.

Duplex 2205 (UNS S32205) Super Duplex 32750 Super Duplex S32760 SS 304 / 316 / 310 Inconel 625 Hastelloy C276 Monel 400 Titanium Gr.2
StandardsASME B16.5, ASME B16.47 (Series A/B), DIN 2633
Size Range½" – 60" (Class 150 – 2500)
Face TypesRaised Face (RF), Flat Face (FF), Ring-Type Joint (RTJ)
Material SpecsASTM A182 F51 (Duplex), F53 (Super Duplex)
Request Quote View Details
Slip-On Flange - Ragnar Metals
Slip-On Flange

Slip-On Flange (SORF)

Slip-on flanges slide over the pipe and are welded both inside and outside. They are easier to align and are suitable for moderate-pressure applications. Cost-effective for lower-pressure chemical and water treatment piping.

Duplex 2205 Super Duplex 32750 SS 304L / 316L Inconel 625 Hastelloy C276
StandardsASME B16.5, ASME B16.47
Size Range½" – 48" (Class 150 – 900)
Face TypesRaised Face (RF), Flat Face (FF)
ApplicationsWater Treatment, Chemical, Marine, HVAC
Request Quote View Details
Blind Flange - Ragnar Metals
Blind Flange

Blind Flange (BLRF)

Blind flanges are solid discs used to block off a pipeline or pressure vessel opening for maintenance, testing or permanent closure. Available in all pressure classes and material grades with raised face, flat face and RTJ seating.

Duplex 2205 Super Duplex 32750 SS 304 / 316 Inconel 625 Hastelloy C276 Monel 400
StandardsASME B16.5, ASME B16.47 Series A/B
Size Range½" – 60" (Class 150 – 2500)
Face TypesRF, FF, RTJ
ApplicationsIsolation, Testing, Pressure Vessel Closure
Request Quote View Details
Socket Weld Flange - Ragnar Metals
Socket Weld Flange

Socket Weld Flange (SWRF)

Socket weld flanges are used for small-diameter, high-pressure piping where the pipe is inserted into the socket and fillet welded. Provides a smooth bore and is excellent for high-pressure steam, hydraulic and chemical lines.

Duplex 2205 Super Duplex 32750 SS 304 / 316 Inconel 625
StandardsASME B16.5
Size Range½" – 4" (Class 150 – 2500)
ApplicationsHigh-Pressure Steam, Hydraulic, Chemical Lines
BoreSmooth bore matching pipe ID
Request Quote View Details
Threaded Flange - Ragnar Metals
Threaded Flange

Threaded Flange (THRF)

Threaded flanges connect to pipe with NPT or BSP threads without welding — making them ideal for hazardous or explosive environments where welding is not permitted. Used in fuel systems, gas lines and instrumentation.

Duplex 2205 Super Duplex 32750 SS 304 / 316 Alloy Steel A105
StandardsASME B16.5, ASME B1.20.1 (NPT)
Size Range½" – 4" (Class 150 – 2500)
Thread TypesNPT (National Pipe Thread), BSPP, BSPT
ApplicationsGas Lines, Fuel Systems, Instrumentation
Request Quote View Details
Lap Joint Flange - Ragnar Metals
Lap Joint Flange

Lap Joint Flange (LJRF)

Lap joint flanges are used with stub ends for easy rotation to align bolt holes and quick disassembly. The flange itself does not contact the fluid — only the stub end does — making it economical in exotic materials by using a carbon steel backing flange.

Duplex 2205 Super Duplex 32750 SS 304 / 316 Inconel 625
StandardsASME B16.5
Size Range½" – 24" (Class 150 – 2500)
Used WithStub Ends (ASME B16.9, MSS SP-43)
ApplicationsRotating/Alignment, Cryogenic, Dissimilar Material Joints
Request Quote View Details
Orifice Flange - Ragnar Metals
Orifice Flange

Orifice Flange

Orifice flanges are used in pairs with an orifice plate between them to measure flow rate in pipelines. They include pressure tappings (jack screws) on the flange face. Available in weld neck and slip-on types in duplex and alloy grades.

Duplex 2205 Super Duplex 32750 SS 304 / 316 Inconel 625
StandardsASME B16.36, ASME B16.5
Size Range1" – 24" (Class 150 – 2500)
TypesWeld Neck (WNORF), Slip-On (SOORF)
ApplicationsFlow Measurement, Process Control
Request Quote View Details
RTJ Flange - Ragnar Metals
RTJ Flange

RTJ Flange (Ring Type Joint)

Ring Type Joint (RTJ) flanges feature a groove machined into the flange face that accepts a metal ring gasket (oval or octagonal ring). Used in high-pressure and high-temperature applications in oil & gas, wellhead and subsea service.

Duplex 2205 Super Duplex 32750 SS 316L Inconel 625 Alloy Steel F11/F22
StandardsASME B16.5, ASME B16.20 (Ring Gaskets)
Ring TypesOval Ring, Octagonal Ring (R/RX/BX series)
Pressure ClassClass 600 – 2500
ApplicationsWellhead, Subsea, High-Pressure Gas Lines
Request Quote View Details

Specialty Flanges

Additional flange types available in Duplex, Super Duplex and Alloy grades

Long Weld Neck Flange

Extended neck for radiographic inspection access. Used in pressure vessels and heat exchangers.

View
Reducing Flange

Connects two different pipe diameters. Eliminates need for a separate reducer fitting.

View
Expander Flange

Integral eccentric reducer + flange. Transitions from smaller pipe to larger bore flange in one piece.

View
Plate Flange

Flat plate flange for non-standard pressure applications and equipment connections.

View
Nipple Flange

Integral short-length nipple + flange. Compact branch connection for vessels and headers.

View
Spectacle Blind Flange

Figure-8 blind for easy line isolation. One end blind plate, one end spacer ring.

View

Browse All Flanges Pages

Explore all flange types, grades, materials and standards we manufacture & export

By Material
Stainless Steel Flanges

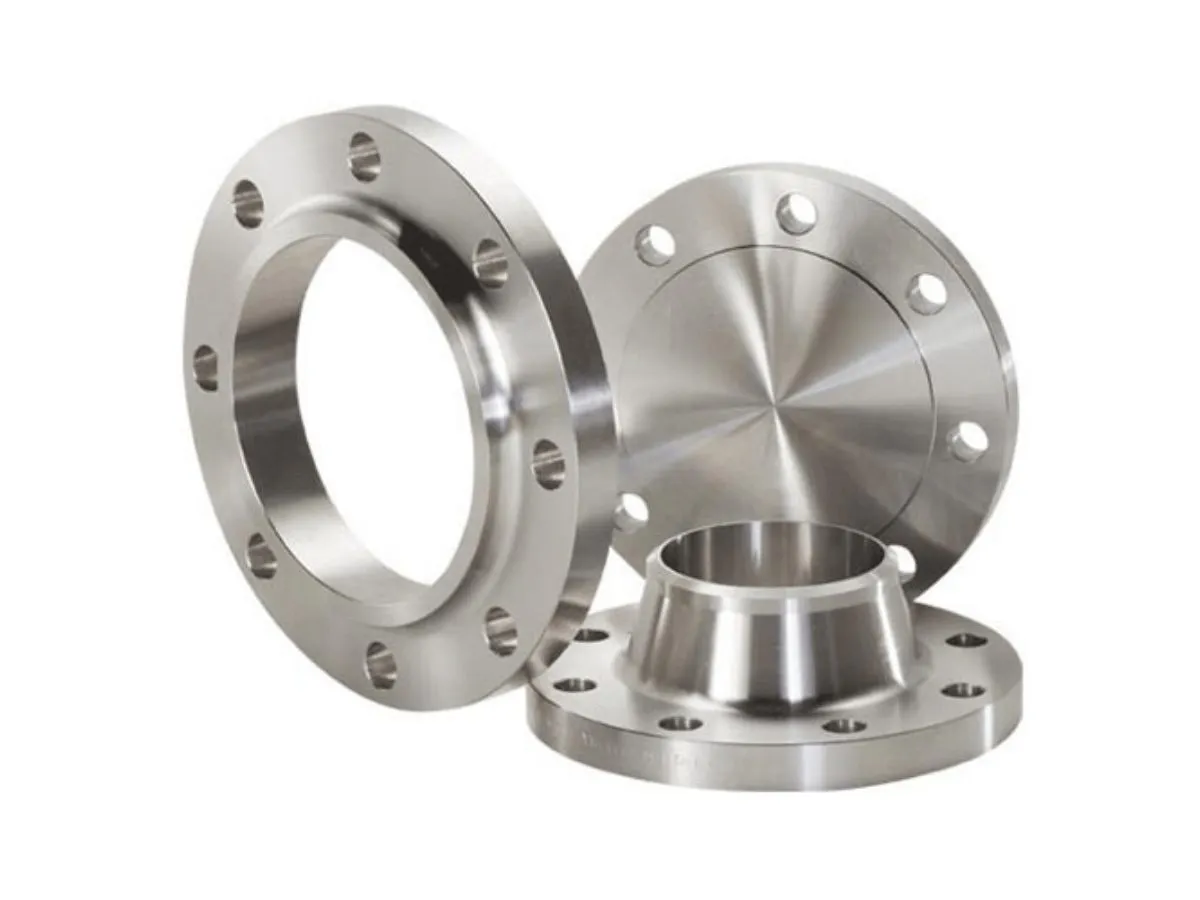

Duplex Steel Flanges

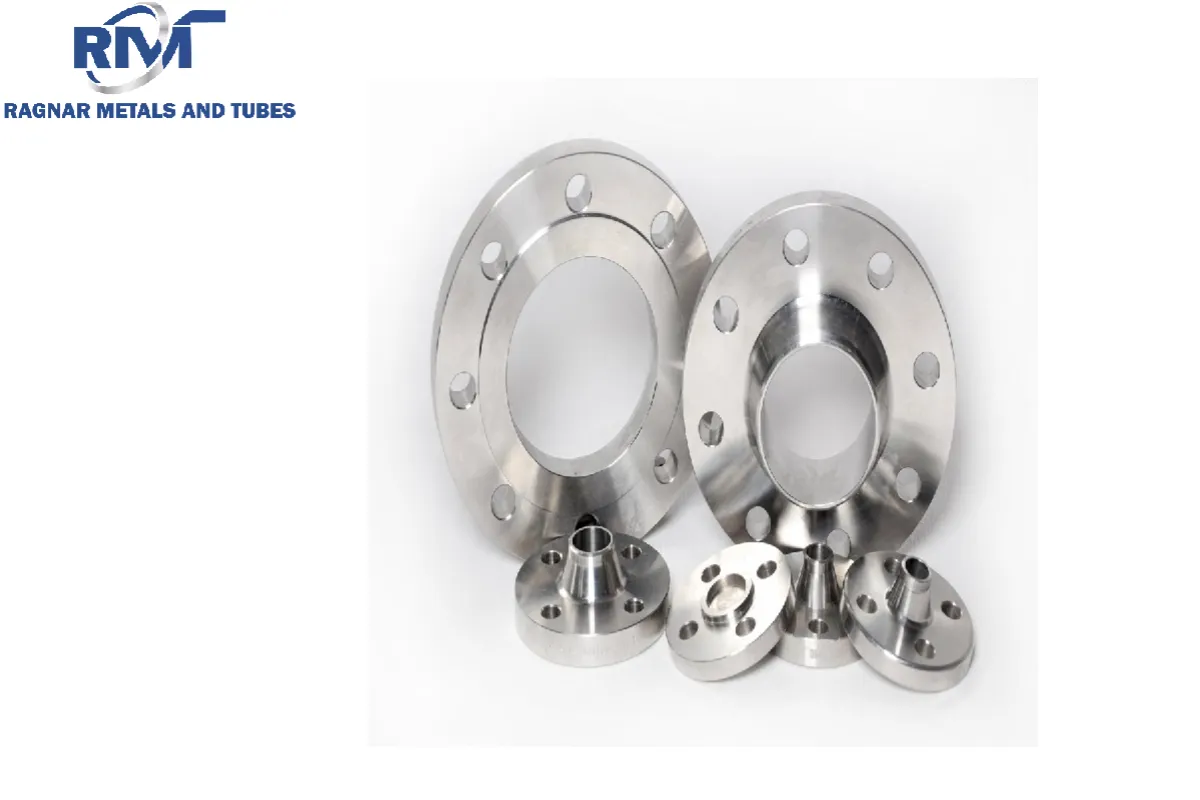

Super Duplex Steel Flanges
Nickel Alloy Flanges
Inconel Flanges
Hastelloy Flanges
Monel Flanges
Titanium Flanges

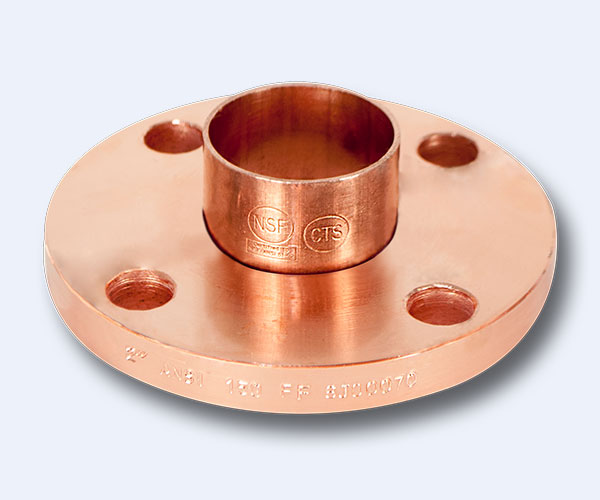

Copper Flanges
Brass Flanges

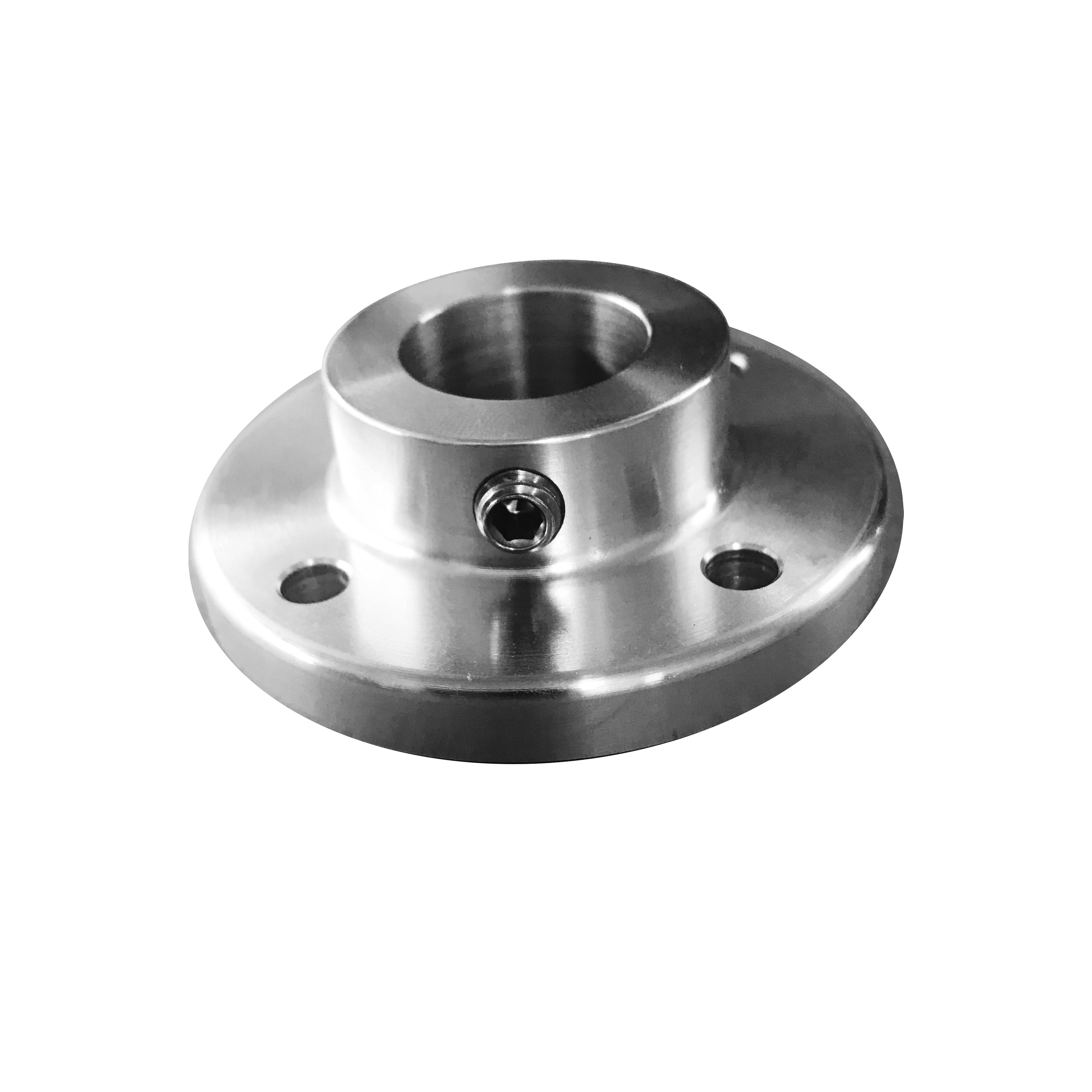

Aluminium Flanges
Aluminium Bronze Flanges

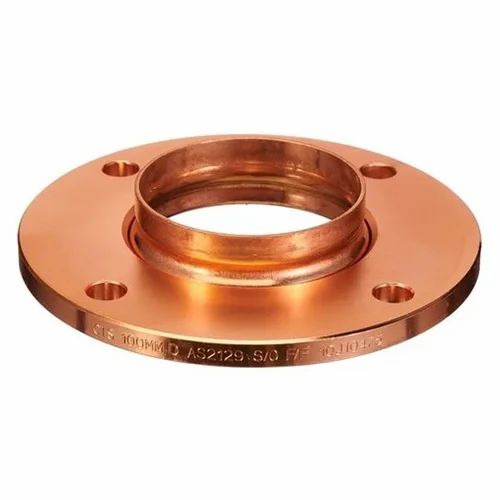

Beryllium Copper Flanges

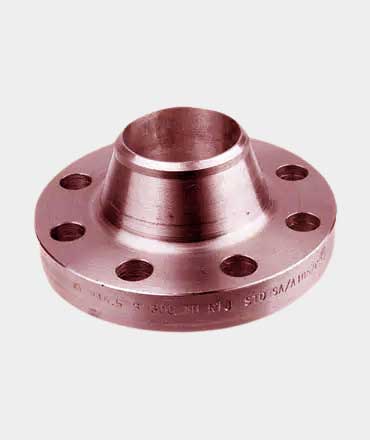

Phosphorus Bronze Flanges
