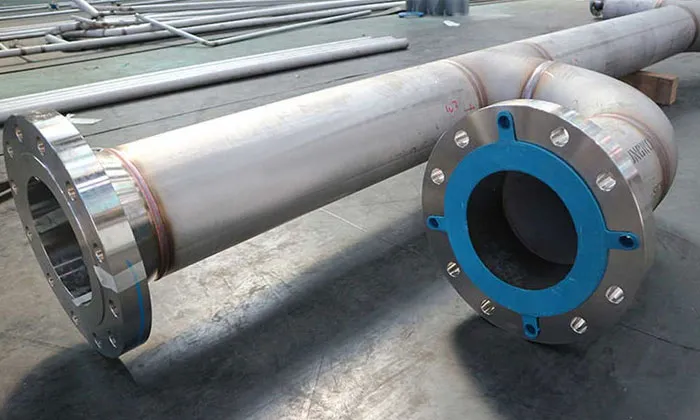

ASME B31.1 Power Piping — Super Duplex Piping Spools

ASME B31.1 Power Piping is the governing pressure piping design code for steam boilers, turbine extraction lines, feed water systems and high-temperature power plant headers. Super duplex UNS S32750 spools designed and fabricated to B31.1 Power Piping benefit from the grade's combination of high allowable stress (nearly double 316L at equivalent wall thickness) and excellent corrosion resistance, enabling thinner walls and lighter spools in aggressive service. Spool fabrication includes PWHT assessment, pipe supporting, branch reinforcement and nozzle calculations per the applicable code section.

Ragnar Metals fabricates spools with MTRs traceable to heat number, weld maps, NDE records and spool data sheets per ASME B31.1 Power Piping requirements. Weld procedures qualified per ASME IX; welders certified per ASME IX. Dimensional inspection to ISO 13920 Class B.

ASME B31.1 Power Piping Duplex Spool Fabrication Requirements

ASME B31.1 Power Piping Code governs the design, fabrication, and testing of pressure piping in power generation plants, including steam and utility piping. Duplex and super duplex stainless steel spools fabricated to ASME B31.1 are typically used in chemical injection systems, seawater cooling circuits, and condensate systems on thermal and nuclear power plants. B31.1 spool fabrication requires full penetration welds with backing rings or back-purge argon shielding for stainless steel, WPS/PQR qualified per ASME Section IX, and a final hydrostatic test at 1.5× design pressure. Dimensional control per ASME B16.9 (butt weld fittings) and B16.5 (flanges). Weld maps, isometrics, and NDE records supplied with each spool.

B31.1 Requirement	Specification for Duplex SS
Weld process	GTAW (TIG) root + GTAW or SMAW fill, FCAW for large bore
Filler metal (2205)	ER2209 (AWS A5.9) — 9% Ni to balance microstructure
Filler metal (2507)	ER2594 (AWS A5.9) — 9% Ni, 4% Mo for 2507
Preheat	Not required for duplex SS below 50mm wall
Hydrotest	1.5× design pressure, hold 10 min minimum
NDE	10% RT or PT on all welds per B31.1 Category D fluid

B31.1 Duplex Spool Applications

• Chemical injection spool assemblies on offshore power generation platforms
• Corrosion-resistant seawater cooling coils and heat exchanger headers
• High-purity water and steam condensate circuits in power plant auxiliary systems
• Fire-water and deluge system duplex steel spool pieces
• Desalination plant utility steam and chemical service spools

About Ragnar Metals & Tubes

Ragnar Metals & Tubes is a trusted manufacturer, supplier, and global exporter of high-performance metal products including fasteners, fittings, pipes, tubes, flanges, and custom-engineered components. With a strong export presence in USA, UK, Germany, UAE, Saudi Arabia, Canada, Australia, and 50+ countries, we are known for delivering precision-engineered solutions for critical and high-temperature industrial applications.

Our manufacturing facility follows strict quality control systems with ISO 9001, ISO 14001, and ISO 45001 certification. Every product is tested and supplied with EN 10204 3.1 / 3.2 Material Test Certificates, ensuring complete material traceability and compliance with international standards such as ASTM, ASME, DIN, EN, and BS.

We cater to bulk industrial buyers, EPC contractors, and engineering projects across oil & gas, petrochemical, marine, power generation, aerospace, offshore drilling, and heavy engineering sectors. With flexible manufacturing, custom dimensions, and fast global delivery, we ensure reliable, consistent, and timely supply for all project requirements.

Why Choose Ragnar Metals & Tubes

• 50+ Countries served
• 24/7 RFQ Support
• Fastest delivery
• Direct manufacturer with bulk stock and fast lead times
• ISO 9001 certified production and documented QA
• Global shipping with export-grade packaging
• EN 10204 3.1 / 3.2 MTCs, third-party inspection on request
• Global export experience to USA, UK, EU, MENA & APAC
• Custom sizes and drawing-based manufacturing
• Faster quotations — send quantity, grade and dimensions
• Bulk quantity available at factory price
• 100% traceability with heat number stamping

Testing & Quality Inspection Process

At Ragnar Metals & Tubes, our testing process is designed to ensure the reliability, durability, and performance of every product we manufacture—including Pipes & Tubes, Fittings, Flanges, Sheets & Plates, Fasteners, and Rods & Bars. All testing follows internationally recognized standards such as ASTM, ASME, ISO, EN, and DIN.

Each batch undergoes multiple inspection stages starting from raw material verification to final dispatch. Our advanced laboratories perform chemical, mechanical, and non-destructive tests to ensure full compliance and traceability.

Types of Tests Performed

Ultrasonic Testing (UT)

Detects internal defects using high-frequency sound waves without damaging the material.

Hardness Testing

Checks resistance to deformation to ensure materials meet mechanical strength requirements.

Surface Finish Inspection

Examines surface quality, cracks, and finishing accuracy for high-precision applications.

Impact Test (Charpy V-Notch)

Measures impact resistance and toughness under varying temperature conditions.

Heat Treatment Report

Ensures optimal mechanical properties through controlled heating and cooling processes.

Tensile Test

Evaluates tensile strength, yield strength, and elongation to verify compliance with standards.

Quality Documentation & Traceability

Every batch is certified and supported with complete documentation including EN 10204 3.1 / 3.2 Material Test Certificates (MTC), heat number traceability, and third-party inspection reports (SGS, TUV, BV, Lloyds) upon request.

Our testing technicians are trained to follow strict procedures, ensuring that Ragnar Metals & Tubes maintains its reputation as a reliable global supplier trusted across the Oil & Gas, Petrochemical, Marine, Power, and Heavy Engineering industries.

Available Grades Table

ASME B31.1 Super Duplex Spool Exporter	Composition	Applications
2205 (Duplex)	22% Cr, 5% Ni, 3% Mo	Oil & gas, marine applications
2507 (Super Duplex)	25% Cr, 7% Ni, 4% Mo	Aggressive chloride environments
F51	22% Cr, 5% Ni, 3% Mo	Seawater applications, chemical processing
F53	25% Cr, 7% Ni, 4% Mo	High-pressure applications, oil & gas
F60	27% Cr, 8% Ni, 5% Mo	Extreme corrosive environments
F44	25% Cr, 7% Ni, 4% Mo, 0.5% N	Marine applications, petrochemical

Specifications Table

Material	ASME B31.1 Super Duplex Spool Exporter
Grades	2205, 2507, F51, F53, F60, F44
Standard	ASTM A789 / A790
Size Range	1/2" NB to 24" NB (Seamless), 1/2" NB to 100" NB (Welded)
Length	Single Random, Double Random & Custom Cut
Form	Round, Square, Rectangular

Chemical Properties Table

Element	2205 (%)	2507 (%)
Carbon (C)	0.03 max	0.03 max
Chromium (Cr)	22.0–23.0	25.0–26.0
Nickel (Ni)	4.5–6.5	6.0–8.0
Manganese (Mn)	2.0 max	2.0 max
Silicon (Si)	1.0 max	1.0 max
Phosphorus (P)	0.03 max	0.03 max
Sulfur (S)	0.02 max	0.02 max
Molybdenum (Mo)	3.0–4.0	4.0–5.0

Mechanical Properties Table

Property	2205	2507
Tensile Strength (MPa)	620 min	700 min
Yield Strength (MPa)	450 min	550 min
Elongation (%)	25 min	20 min
Hardness (HRB)	95 max	100 max

ASME B31.1 Super Duplex Spool Exporter Price List (2025)

Material Grade	Thickness	Price (USD / Kg)	Price (INR / Kg)
ASME B31.1 Super Duplex Spool Exporter	3 mm	$3.50 – $4.10	₹280 – ₹340
ASME B31.1 Super Duplex Spool Exporter	6 mm	$3.80 – $4.50	₹300 – ₹360
ASME B31.1 Super Duplex Spool Exporter	10 mm	$4.20 – $5.00	₹320 – ₹400

Note: The above prices are for reference only. Actual pricing may vary based on size, thickness, quantity, raw material cost, and delivery location. Contact us to get the best and most updated pricing for ASME B31.1 Super Duplex Spool Exporter.

Lead Time

2–7 weeks depending on size

Delivery Terms

FOB, CIF, DDP

Shipping Modes

Sea / Air / Express

Export Packaging & Shipping

• Sea-worthy fumigated wooden crates with waterproof lining
• Palletised boxing with clear shipping marks & heat number labels
• Container stuffing supervision and loading photos on request

MOQ & Payment Terms

Minimum Order Quantity: 25–100 Kg depending on part size and grade.

Payment Terms: Depending On Grade and Quantity Size

Applications & Uses

• Oil & Gas Industry
• Petrochemical Plants
• Water Treatment Plants
• Pharmaceutical Industry
• Food & Beverage Industry
• Automobile Industry

Cities We Suppllied In India

We exported to 50+ countries worldwide.

Frequently Asked Questions

Do you provide Material Test Certificates?

Yes, we provide EN 10204 3.1 / 3.2 Material Test Certificates with complete chemical and mechanical analysis for every shipment.

What is the Minimum Order Quantity (MOQ)?

MOQ generally ranges between 25–100 Kg depending on product size, grade and specifications.

Do you export to USA, Europe and UAE?

Yes, we ship worldwide including USA, UK, Germany, UAE, Saudi Arabia, Canada and Australia.

What are your payment terms?

Typical payment terms are 30% advance and 70% against copy of shipping documents. Payments via T/T, LC and SWIFT are accepted.

What packaging do you use for export?

All products are packed in sea-worthy fumigated wooden boxes with waterproof lamination, pallet loading and shipment marking for traceability.
