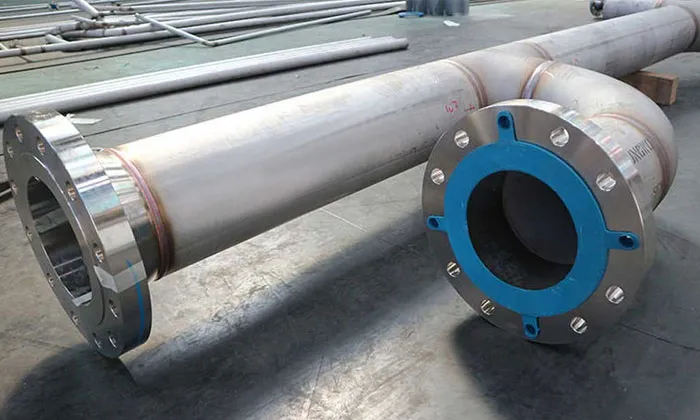

ASME B31.3 Process Piping — Super Duplex Piping Spools

ASME B31.3 Process Piping is the governing pressure piping design code for chemical plant process lines, refinery unit piping, offshore topsides and petrochemical reactor connections. Super duplex UNS S32750 spools designed and fabricated to B31.3 Process Piping benefit from the grade's combination of high allowable stress (nearly double 316L at equivalent wall thickness) and excellent corrosion resistance, enabling thinner walls and lighter spools in aggressive service. Spool fabrication includes PWHT assessment, pipe supporting, branch reinforcement and nozzle calculations per the applicable code section.

Ragnar Metals fabricates spools with MTRs traceable to heat number, weld maps, NDE records and spool data sheets per ASME B31.3 Process Piping requirements. Weld procedures qualified per ASME IX; welders certified per ASME IX. Dimensional inspection to ISO 13920 Class B.

ASME B31.3 Process Piping Duplex Spool Shop Fabrication

ASME B31.3 Process Piping Code is the primary design code for chemical plant, refinery, and offshore topsides piping. Duplex and super duplex stainless steel spools fabricated to ASME B31.3 are used in corrosive chemical services — chlorides, acids, hypochlorite — where carbon steel is unsuitable. B31.3 specifies fluid categories (Normal, Category D, Category M, and High Pressure) that govern NDE extent: Normal fluid service requires 5% random RT or UT on welds; Category M (toxic fluid) requires 100% RT on all welds. Shop-fabricated duplex spools include full WPS/PQR documentation to ASME Section IX, positive material identification (PMI) of all components, and hydrotest or pneumatic test per B31.3 Paragraph 345.

B31.3 Fluid Category	NDE Requirement on Welds	Duplex Application Example
Normal	5% random RT/UT	Chloride-bearing cooling water headers
Category D (benign fluid)	Visual only (VT)	Seawater firewater distribution
Category M (highly toxic)	100% RT on all welds	Chlorine, HF acid, or H2S service
High Pressure (Chapter IX)	100% RT + PT on all welds	HP gas injection manifolds above 3000 psi

B31.3 Duplex Spool Applications

• Topsides process piping on oil and gas platforms (produced fluid, gas, chemicals)
• Refinery process unit piping in seawater cooling and desalter effluent service
• Chlor-alkali plant chlorine and caustic piping spool assemblies
• Seawater intake and reject piping at SWRO desalination plants
• Pharmaceutical plant high-purity CIP (Clean-In-Place) sanitary duplex spools

About Ragnar Metals & Tubes

Ragnar Metals & Tubes is a trusted manufacturer, supplier, and global exporter of high-performance metal products including fasteners, fittings, pipes, tubes, flanges, and custom-engineered components. With a strong export presence in USA, UK, Germany, UAE, Saudi Arabia, Canada, Australia, and 50+ countries, we are known for delivering precision-engineered solutions for critical and high-temperature industrial applications.

Our manufacturing facility follows strict quality control systems with ISO 9001, ISO 14001, and ISO 45001 certification. Every product is tested and supplied with EN 10204 3.1 / 3.2 Material Test Certificates, ensuring complete material traceability and compliance with international standards such as ASTM, ASME, DIN, EN, and BS.

We cater to bulk industrial buyers, EPC contractors, and engineering projects across oil & gas, petrochemical, marine, power generation, aerospace, offshore drilling, and heavy engineering sectors. With flexible manufacturing, custom dimensions, and fast global delivery, we ensure reliable, consistent, and timely supply for all project requirements.

Why Choose Ragnar Metals & Tubes

• 50+ Countries served
• 24/7 RFQ Support
• Fastest delivery
• Direct manufacturer with bulk stock and fast lead times
• ISO 9001 certified production and documented QA
• Global shipping with export-grade packaging
• EN 10204 3.1 / 3.2 MTCs, third-party inspection on request
• Global export experience to USA, UK, EU, MENA & APAC
• Custom sizes and drawing-based manufacturing
• Faster quotations — send quantity, grade and dimensions
• Bulk quantity available at factory price
• 100% traceability with heat number stamping

Testing & Quality Inspection Process

At Ragnar Metals & Tubes, our testing process is designed to ensure the reliability, durability, and performance of every product we manufacture—including Pipes & Tubes, Fittings, Flanges, Sheets & Plates, Fasteners, and Rods & Bars. All testing follows internationally recognized standards such as ASTM, ASME, ISO, EN, and DIN.

Each batch undergoes multiple inspection stages starting from raw material verification to final dispatch. Our advanced laboratories perform chemical, mechanical, and non-destructive tests to ensure full compliance and traceability.

Types of Tests Performed

Ultrasonic Testing (UT)

Detects internal defects using high-frequency sound waves without damaging the material.

Hardness Testing

Checks resistance to deformation to ensure materials meet mechanical strength requirements.

Surface Finish Inspection

Examines surface quality, cracks, and finishing accuracy for high-precision applications.

Impact Test (Charpy V-Notch)

Measures impact resistance and toughness under varying temperature conditions.

Heat Treatment Report

Ensures optimal mechanical properties through controlled heating and cooling processes.

Tensile Test

Evaluates tensile strength, yield strength, and elongation to verify compliance with standards.

Quality Documentation & Traceability

Every batch is certified and supported with complete documentation including EN 10204 3.1 / 3.2 Material Test Certificates (MTC), heat number traceability, and third-party inspection reports (SGS, TUV, BV, Lloyds) upon request.

Our testing technicians are trained to follow strict procedures, ensuring that Ragnar Metals & Tubes maintains its reputation as a reliable global supplier trusted across the Oil & Gas, Petrochemical, Marine, Power, and Heavy Engineering industries.

Available Grades Table

ASME B31.3 Super Duplex Spool Exporter	Composition	Applications
2507 (Super Duplex)	25% Cr, 7% Ni, 4% Mo	Aggressive chloride environments
2205 (Duplex)	22% Cr, 5% Ni, 3% Mo	Oil & gas, marine applications
Super Duplex 1.4410	25% Cr, 7% Ni, 4% Mo, N	Seawater applications, chemical processing
Super Duplex 1.4501	25% Cr, 7% Ni, 4% Mo, N	Oil and gas, petrochemical
Super Duplex 1.4462	22% Cr, 5% Ni, 3% Mo, N	Marine, pulp and paper
Super Duplex 1.4412	25% Cr, 7% Ni, 4% Mo	High-pressure applications
Super Duplex 1.4507	25% Cr, 7% Ni, 4% Mo, N	Desalination plants, chemical industry
Super Duplex 1.4503	25% Cr, 7% Ni, 4% Mo, N	Offshore structures, heat exchangers

Specifications Table

Material	ASME B31.3 Super Duplex Spool Exporter
Grades	2507, 2205, 1.4410, 1.4501, 1.4462, etc.
Standard	ASTM A312 / A213 / A269 / A358
Size Range	1/2" NB to 24" NB (Seamless), 1/2" NB to 100" NB (Welded)
Length	Single Random, Double Random & Custom Cut
Form	Round, Square, Rectangular

Chemical Properties Table

Element	2507 (%)	2205 (%)
Carbon (C)	0.03 max	0.03 max
Chromium (Cr)	24.0–26.0	21.0–23.0
Nickel (Ni)	6.0–8.0	4.5–6.5
Manganese (Mn)	1.0 max	2.0 max
Silicon (Si)	1.0 max	1.0 max
Phosphorus (P)	0.03 max	0.03 max
Sulfur (S)	0.01 max	0.01 max
Molybdenum (Mo)	3.0–5.0	2.5–3.5

Mechanical Properties Table

Property	2507	2205
Tensile Strength (MPa)	800 min	620 min
Yield Strength (MPa)	550 min	450 min
Elongation (%)	25 min	30 min
Hardness (HRB)	95 max	90 max

ASME B31.3 Super Duplex Spool Exporter Price List (2025)

Material Grade	Thickness	Price (USD / Kg)	Price (INR / Kg)
ASME B31.3 Super Duplex Spool Exporter	3 mm	$4.00 – $4.70	₹320 – ₹380
ASME B31.3 Super Duplex Spool Exporter	6 mm	$4.50 – $5.20	₹360 – ₹420
ASME B31.3 Super Duplex Spool Exporter	10 mm	$5.00 – $6.00	₹400 – ₹480

Note: The above prices are for reference only. Actual pricing may vary based on size, thickness, quantity, raw material cost, and delivery location. Contact us to get the best and most updated pricing for ASME B31.3 Super Duplex Spool Exporter.

Lead Time

2–7 weeks depending on size

Delivery Terms

FOB, CIF, DDP

Shipping Modes

Sea / Air / Express

Export Packaging & Shipping

• Sea-worthy fumigated wooden crates with waterproof lining
• Palletised boxing with clear shipping marks & heat number labels
• Container stuffing supervision and loading photos on request

MOQ & Payment Terms

Minimum Order Quantity: 25–100 Kg depending on part size and grade.

Payment Terms: Depending On Grade and Quantity Size

Applications & Uses

• Oil & Gas Industry
• Petrochemical Plants
• Water Treatment Plants
• Pharmaceutical Industry
• Food & Beverage Industry
• Automobile Industry

Cities We Suppllied In India

We exported to 50+ countries worldwide.

Frequently Asked Questions

Do you provide Material Test Certificates?

Yes, we provide EN 10204 3.1 / 3.2 Material Test Certificates with complete chemical and mechanical analysis for every shipment.

What is the Minimum Order Quantity (MOQ)?

MOQ generally ranges between 25–100 Kg depending on product size, grade and specifications.

Do you export to USA, Europe and UAE?

Yes, we ship worldwide including USA, UK, Germany, UAE, Saudi Arabia, Canada and Australia.

What are your payment terms?

Typical payment terms are 30% advance and 70% against copy of shipping documents. Payments via T/T, LC and SWIFT are accepted.

What packaging do you use for export?

All products are packed in sea-worthy fumigated wooden boxes with waterproof lamination, pallet loading and shipment marking for traceability.
