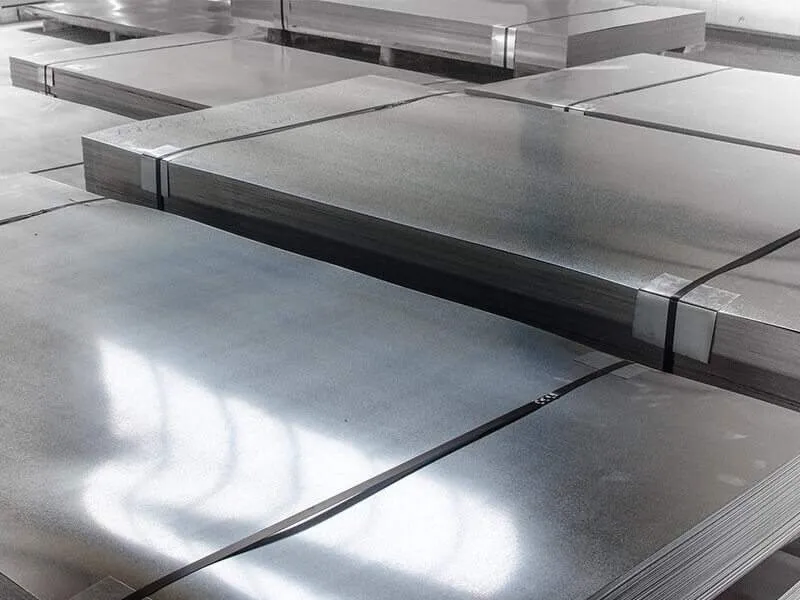

ASTM A240 / ASME SA-240 Super Duplex S32750 Sheet and Plate

ASTM A240 flat-rolled UNS S32750 (2507) delivers 795 MPa tensile and PREN ≥ 40 — nearly double the strength of 316L with far superior chloride resistance. Used for pressure vessel heads, heat exchanger baffles, seawater pump casings and offshore structural panels where 316L is prone to crevice corrosion.

Supplied solution annealed and pickled. EN 10204 3.1 MTC per heat. UT to ASTM A578/Level A for PV applications. Width to 2500 mm available from stock at Mumbai warehouse.

UNS S32750 (Duplex 2507) Complete Grade Data

UNS S32750, commercially known as Super Duplex 2507, is a high-alloy duplex stainless steel with 25% chromium, 7% nickel, 4% molybdenum, and 0.27% nitrogen. The PREN (Pitting Resistance Equivalent Number) of S32750 is minimum 42 — making it one of the most corrosion-resistant stainless steels available, significantly outperforming standard duplex 2205 (PREN 35) and even 6Mo austenitic grades. S32750 complies with NACE MR0175/ISO 15156 for sour service in oil and gas applications and is approved to ASTM A182 F53 (flanges), ASTM A240 S32750 (plate/sheet), ASTM A789/A790 (tube/pipe), and EN 10088-2 (European specification). Critical processing requirement: solution annealing at 1025–1125°C followed by rapid water quench to prevent sigma phase precipitation.

Property	S32750 (2507)	S31803 (2205) for comparison	S31600 (316L) for comparison
PREN (min)	42	34	24
Cr content	24–26%	21–23%	16–18%
Mo content	3.0–5.0%	2.5–3.5%	2.0–3.0%
Min Yield (MPa)	550	450	170
Min Tensile (MPa)	795	620	485
Max temp for chloride SCC	220°C	150°C	50°C
NACE MR0175 approval	Yes	Yes	Limited

S32750 (2507) Critical Applications

• Subsea umbilical and chemical injection tubing (400 bar rated service)
• High-pressure seawater injection pumps and manifolds in EOR water flood projects
• Deep water flexible riser end fittings and swivel stacks
• Sulphuric acid and phosphoric acid process plant piping
• FGD (Flue Gas Desulphurisation) absorber tower internals and headers

About Ragnar Metals & Tubes

Ragnar Metals & Tubes is a trusted manufacturer, supplier, and global exporter of high-performance metal products including fasteners, fittings, pipes, tubes, flanges, and custom-engineered components. With a strong export presence in USA, UK, Germany, UAE, Saudi Arabia, Canada, Australia, and 50+ countries, we are known for delivering precision-engineered solutions for critical and high-temperature industrial applications.

Our manufacturing facility follows strict quality control systems with ISO 9001, ISO 14001, and ISO 45001 certification. Every product is tested and supplied with EN 10204 3.1 / 3.2 Material Test Certificates, ensuring complete material traceability and compliance with international standards such as ASTM, ASME, DIN, EN, and BS.

We cater to bulk industrial buyers, EPC contractors, and engineering projects across oil & gas, petrochemical, marine, power generation, aerospace, offshore drilling, and heavy engineering sectors. With flexible manufacturing, custom dimensions, and fast global delivery, we ensure reliable, consistent, and timely supply for all project requirements.

Why Choose Ragnar Metals & Tubes

• 50+ Countries served
• 24/7 RFQ Support
• Fastest delivery
• Direct manufacturer with bulk stock and fast lead times
• ISO 9001 certified production and documented QA
• Global shipping with export-grade packaging
• EN 10204 3.1 / 3.2 MTCs, third-party inspection on request
• Global export experience to USA, UK, EU, MENA & APAC
• Custom sizes and drawing-based manufacturing
• Faster quotations — send quantity, grade and dimensions
• Bulk quantity available at factory price
• 100% traceability with heat number stamping

Testing & Quality Inspection Process

At Ragnar Metals & Tubes, our testing process is designed to ensure the reliability, durability, and performance of every product we manufacture—including Pipes & Tubes, Fittings, Flanges, Sheets & Plates, Fasteners, and Rods & Bars. All testing follows internationally recognized standards such as ASTM, ASME, ISO, EN, and DIN.

Each batch undergoes multiple inspection stages starting from raw material verification to final dispatch. Our advanced laboratories perform chemical, mechanical, and non-destructive tests to ensure full compliance and traceability.

Types of Tests Performed

Ultrasonic Testing (UT)

Detects internal defects using high-frequency sound waves without damaging the material.

Hardness Testing

Checks resistance to deformation to ensure materials meet mechanical strength requirements.

Surface Finish Inspection

Examines surface quality, cracks, and finishing accuracy for high-precision applications.

Impact Test (Charpy V-Notch)

Measures impact resistance and toughness under varying temperature conditions.

Heat Treatment Report

Ensures optimal mechanical properties through controlled heating and cooling processes.

Tensile Test

Evaluates tensile strength, yield strength, and elongation to verify compliance with standards.

Quality Documentation & Traceability

Every batch is certified and supported with complete documentation including EN 10204 3.1 / 3.2 Material Test Certificates (MTC), heat number traceability, and third-party inspection reports (SGS, TUV, BV, Lloyds) upon request.

Our testing technicians are trained to follow strict procedures, ensuring that Ragnar Metals & Tubes maintains its reputation as a reliable global supplier trusted across the Oil & Gas, Petrochemical, Marine, Power, and Heavy Engineering industries.

Available Grades Table

Super Duplex Stainless Steel 32750 Sheet	Composition	Applications
304	18% Cr, 8% Ni	General-purpose, food industry
304L	18% Cr, 8% Ni (low carbon)	Welded components, chemical industry
316	16% Cr, 10% Ni, 2% Mo	Marine, chemical processing
316L	16% Cr, 10% Ni, 2% Mo (low carbon)	Medical implants, welded structures
310	25% Cr, 20% Ni	High-temperature furnace parts
309	23% Cr, 13% Ni	Heat exchangers, high-temp service
321	18% Cr, 9% Ni, Ti	High-temperature services
347	18% Cr, 10% Ni, Nb	Welded pressure vessels
410	11.5–13.5% Cr	Cutlery, valves, surgical tools
420	12–14% Cr	Blades, surgical instruments
430	16–18% Cr	Kitchen appliances, automotive trim
409	10.5–11.75% Cr	Exhaust systems, automotive
439	17.5–18.5% Cr, low C	Automotive exhausts, home appliances
444	18% Cr, 2% Mo	Hot water tanks, solar heaters
904L	20% Cr, 25% Ni, 4.5% Mo, Cu	Severe corrosion environments
2205 (Duplex)	22% Cr, 5% Ni, 3% Mo	Oil & gas, marine applications
2507 (Super Duplex)	25% Cr, 7% Ni, 4% Mo	Aggressive chloride environments
32750 (Super Duplex)	25% Cr, 7% Ni, 4% Mo, 0.3% N	Oil & gas, petrochemical
201	16–18% Cr, 3.5–5.5% Ni, Mn	Utensils, sinks, architecture
202	17–19% Cr, 4–6% Ni, Mn	Railings, cookware, architecture
303	18% Cr, 8% Ni, S	Machinability applications
405	12% Cr, Al	Heat exchangers, petrochemical

Specifications Table

Material	Super Duplex Stainless Steel 32750 Sheet
Grades	304, 304L, 316, 316L, 321, 347, 2507, 32750
Standard	ASTM A312 / A213 / A269 / A358
Size Range	1/2" NB to 24" NB (Seamless), 1/2" NB to 100" NB (Welded)
Length	Single Random, Double Random & Custom Cut
Form	Round, Square, Rectangular

Chemical Properties Table

Element	32750 (%)
Carbon (C)	0.03 max
Chromium (Cr)	24.0–26.0
Nickel (Ni)	6.0–8.0
Manganese (Mn)	1.0 max
Silicon (Si)	1.0 max
Phosphorus (P)	0.03 max
Sulfur (S)	0.02 max
Molybdenum (Mo)	3.5–4.5
Nitrogen (N)	0.2–0.3

Mechanical Properties Table

Property	32750
Tensile Strength (MPa)	800 min
Yield Strength (MPa)	550 min
Elongation (%)	25 min
Hardness (HRB)	95 max

Super Duplex Stainless Steel 32750 Sheet Price List (2025)

Material Grade	Thickness	Price (USD / Kg)	Price (INR / Kg)
Super Duplex Stainless Steel 32750 Sheet	3 mm	$3.20 – $3.90	₹260 – ₹320
Super Duplex Stainless Steel 32750 Sheet	6 mm	$3.50 – $4.20	₹290 – ₹350
Super Duplex Stainless Steel 32750 Sheet	10 mm	$3.90 – $4.80	₹310 – ₹380

Note: The above prices are for reference only. Actual pricing may vary based on size, thickness, quantity, raw material cost, and delivery location. Contact us to get the best and most updated pricing for Super Duplex Stainless Steel 32750 Sheet.

Lead Time

2–7 weeks depending on size

Delivery Terms

FOB, CIF, DDP

Shipping Modes

Sea / Air / Express

Export Packaging & Shipping

• Sea-worthy fumigated wooden crates with waterproof lining
• Palletised boxing with clear shipping marks & heat number labels
• Container stuffing supervision and loading photos on request

MOQ & Payment Terms

Minimum Order Quantity: 25–100 Kg depending on part size and grade.

Payment Terms: Depending On Grade and Quantity Size

Applications & Uses

• Oil & Gas Industry
• Petrochemical Plants
• Water Treatment Plants
• Pharmaceutical Industry
• Food & Beverage Industry
• Automobile Industry

Cities We Suppllied In India

We exported to 50+ countries worldwide.

Frequently Asked Questions

Do you provide Material Test Certificates?

Yes, we provide EN 10204 3.1 / 3.2 Material Test Certificates with complete chemical and mechanical analysis for every shipment.

What is the Minimum Order Quantity (MOQ)?

MOQ generally ranges between 25–100 Kg depending on product size, grade and specifications.

Do you export to USA, Europe and UAE?

Yes, we ship worldwide including USA, UK, Germany, UAE, Saudi Arabia, Canada and Australia.

What are your payment terms?

Typical payment terms are 30% advance and 70% against copy of shipping documents. Payments via T/T, LC and SWIFT are accepted.

What packaging do you use for export?

All products are packed in sea-worthy fumigated wooden boxes with waterproof lamination, pallet loading and shipment marking for traceability.
